Bug 'turbinasi moylash moy filtri

Vacuum Type steam turbine lube oil filter mainly designed to purify various industrial waste oils with the viscosity lower than 320 mm²/s, such as tirbine oil, mechanical oil, hydraulic oil and cooler oil etc. which are polluted by the water infiltration, emulsification and particle pollution etc. in the process of their production, transportation and usage.

So'rov yuborish

Ta'rif

Vakuum ajratish tizimining maxsus dizayni va nopoklik filtrlash tizimi orqali Tongrui yog 'tozalagichlari yog'dagi turli ifloslantiruvchi moddalarni samarali filtrlashi mumkin.

Vakuum tipidagi bug 'turbinasi moyli moy filtri t ajoyib iqtisodiy foydaga ega, bu zavodlarga texnik xizmat ko'rsatish, energiyani tejash va xarajatlarni-kamlashtirish uchun ideal tanlov bo'ladi.

Maxsus dizayn va yetuk texnologiya uning{0}}davolashdan keyingi moy indeksini va'da qilishi mumkin:

Suv miqdori: 50ppm dan kam yoki unga teng

Filtrlash aniqligi: 3 mikron

Zarrachalar: yo'q (vizual test orqali)

Texnik xususiyatlari:

Parametr:Element	Birlik	ZJC-10	ZJC-20	ZJC-30	ZJC-50	ZJC-75	ZJC-100	ZJC-150	ZJC-200
Oqim darajasi	L/H	600	1200	1800	3000	4500	6000	9000	12000
Vakuum darajasi	Mpa	-0.06 - -0.096
Ish bosimi	Mpa	0 dan kichik yoki unga teng.3
Xatosiz	H	4000 dan katta yoki unga teng
Doimiy ish vaqti	H	150 dan katta yoki teng
Ishlash harorati	daraja	40 - 70
Isitish quvvati	kVt	15	18	30	45	60	72	72	84
Umumiy quvvat	kVt	17	20	33	49	66	79	81	97
Kirish chiqishi diametri	DN	25	25	25	32	42	42	50	50
vazn	Kg	500	530	570	780	800	960	1050	1550
Hajmi (mm)	L	1300	1350	1450	1500	1500	1800	1800	1800
	W	1000	1000	1100	1150	1000	1500	1650	1500
	H	1450	1450	1500	1650	1750	1800	1900	2000
Davolanishdan keyin neft indeksi
Suv tarkibi	80 ppm
Gaz tarkibi	0.1 foizdan kam yoki unga teng
tozalik	Less than or equal to 5µm（or as per requirement）
Demulsifikatsiya qiymati	10 daqiqadan kam yoki unga teng

◆Spare Parts

1.filtrlash tizimi

Thebug 'turbinasi moylash moy filtri

mashina ko'p bosqichli filtrlash tizimidan-foydalanadi, oldingi filtr zanglamaydigan po'latdir, uni qayta-qayta yuvish mumkin, nozik filtr esa import materialidir.

2. Isitish tizimi

Heating system consists of heater, temperature controller and other components . Multiple sets of heaters can be used alone, can also be put into use at the same time. The start for heater is controlled by the temperature set on the temperature controller.Temperature control device must be started under the running of vacuum pump and oil pump. Therefore, in the three interlocking, not only ensure the safe operation of the heater, but also prevent from producing "dead" oil zone and the oil aging, at the same time it can monitoring the heating system and control the heater works within a set temperature range. When the heater temperature exceeds the set point, the machine can be automatically stop the heater running to ensure the safety of the machine, oil and personnel.

3.Vakuum tizimi

Vacuum system consists of a vacuum separator, vacuum pumps, condensers, coolers and other components. Using the " cavitation " principle, the contact area of the oil expands hundreds times of the original in the vacuum separator, while the "cavitation" system and the evaporation surface area of the oil is increasing, and evaporated interface constantly updated to maximize the travel of the oil in the vacuum system and static water evaporation area.

4.avtomatik boshqaruv tizimi va himoya tizimi

Avtomatik boshqaruv tizimi infraqizil sensorlar, motorlar, solenoid klapanlar, himoya komponentlari va boshqa komponentlardan iborat.
5.sovutish tizimi
U issiqlik almashtirgich, sovutgich, radiator, suv ombori va boshqa qismlardan iborat. Vakuumli separatordan hosil bo'lgan suv bug'i va boshqa gaz issiqlik almashtirgich orqali sovutgichga, radiatorga o'tgandan keyin suvga aylanadi va suvga to'planadi. Quritish gazi vakuum pompasi orqali chiqariladi, bu esa vakuum nasosini himoya qilishi mumkin.

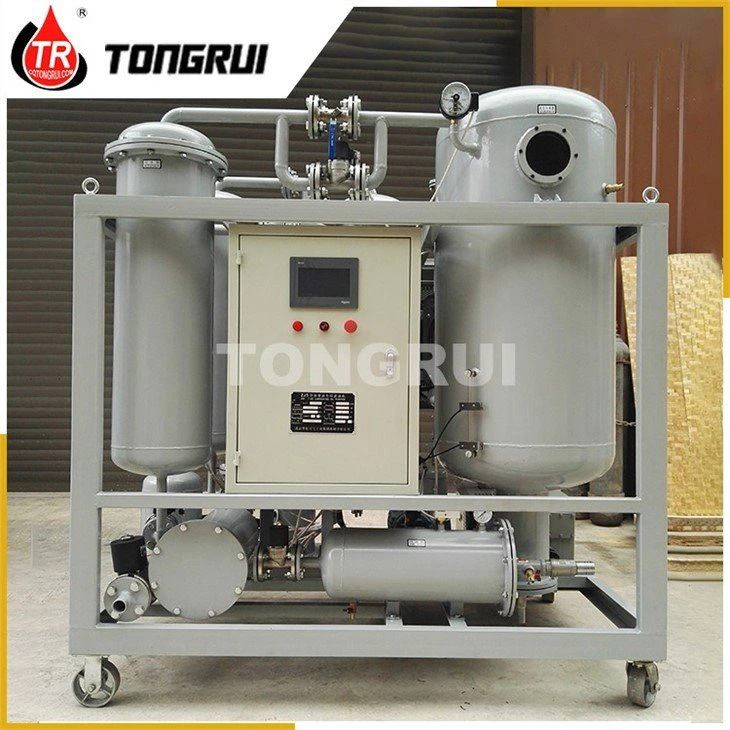

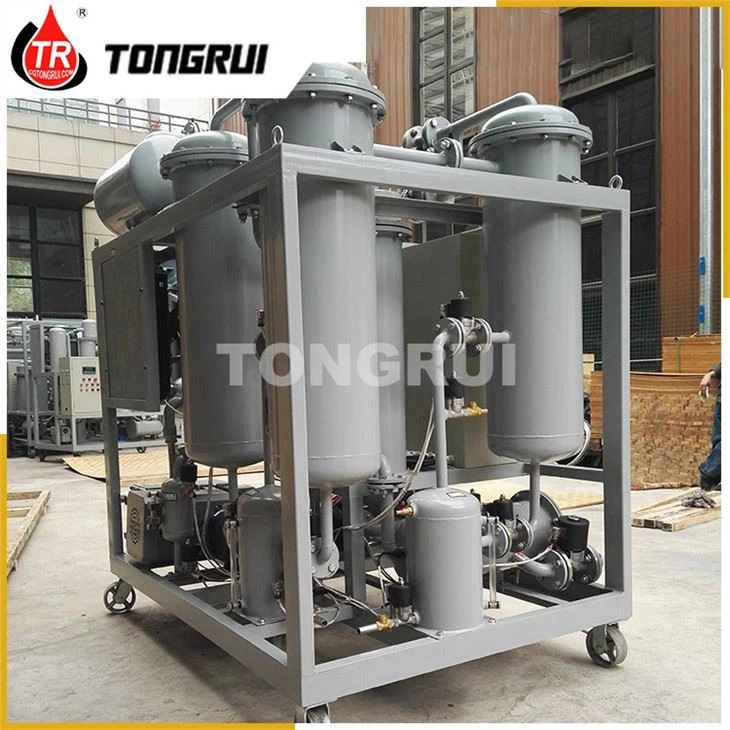

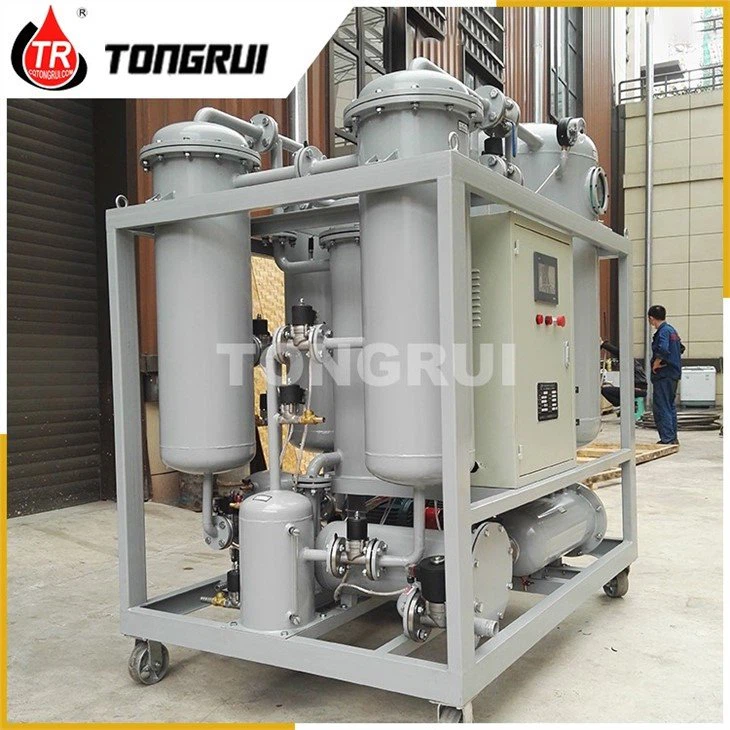

Bug 'turbinasi moy filtri rasmlari:

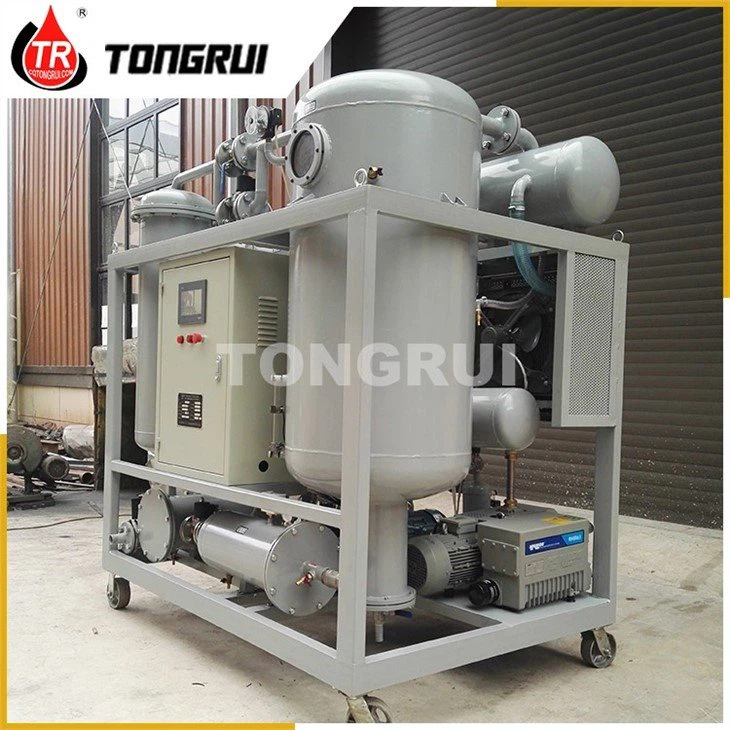

turbine oil filtration 1800liters
