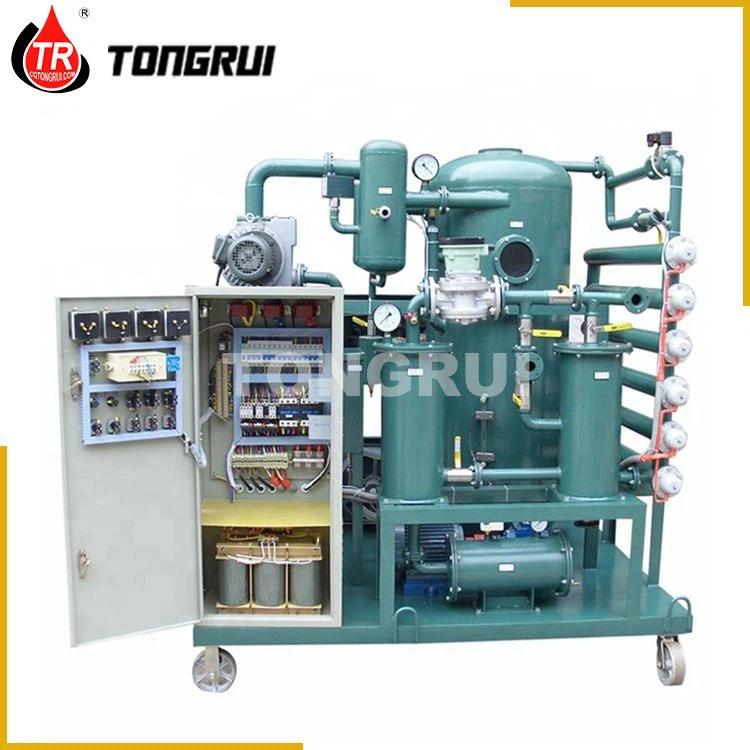

Transformator moy filtrlash mashinasi

Bir muddat foydalanishdan keyin transformator moyi kislorodga ta'sir qiladi va suv, mis va temir kabi begona moddalar bilan aralashadi va ish harorati tezroq tezlashadi, shuning uchun u oksidlanadi va asl ish faoliyatini yo'qotadi va bu mumkin emas. yana samarali foydalaniladi.

So'rov yuborish

Ta'rif

Xitoy brendi arzon narxda ishlatiladigan transformator moy filtrlash mashinasi

1. After a period of use, the transformer oil will be exposed to oxygen and mixed with foreign matter such as water, copper, and iron, and the working temperature will accelerate faster, so it will oxidize and lose its original performance, and it cannot be used again effectively. Therefore, Tongrui's transformer oil filter machine can effectively remove water, dirt, gas and other impurities in the oil, such as degreasing, turbine oil, lubricating oil, engine oil, hydraulic oil, gear oil, etc .; thus maintaining its lubrication and insulation properties, This reduces component wear and fuel consumption.

2. Tongrui Oil Purifier Manufacturing Co., Ltd Xitoyning Chongqing shahridagi mashhur transformator moy filtri ishlab chiqaruvchisi. Uning mahsulotlari ko'plab mamlakatlarda iste'molchilar orasida mashhur.

Tavsif

I. Transformator moy filtrlash zavodining tavsifi:

ZJA seriyasivakuumli izolyatsiyalash moyini tozalash vositasi asosan transformatorlarda, elektron to'xtatuvchilardan, o'zaro induktorlarda, kuchlanish regulyatorlarida va o'tish moslamalarida ishlatiladigan moylarning ishlash muddatini uzaytirish yoki transformatorlarga izolyatsion moyni quyish uchun ishlatiladi.
Regeneratorlar bilan jihozlangan transformator yog 'filtri mashinasi kislota ta'sirini yaxshilash, rangsizlantirish va dielektrik va kislotani samaraliroq olib tashlash imkonini beradi.
Buzilish kuchlanishining qiymati 15KV dan 65KV gacha oshadi. Izolyatsiya qiluvchi moyning ishlashi va ishlash muddati tozalash va qayta tiklashdan keyin yaxshilanadi va dahshatli darajada uzaytiriladi.
Maxsus variantlar mavjud.

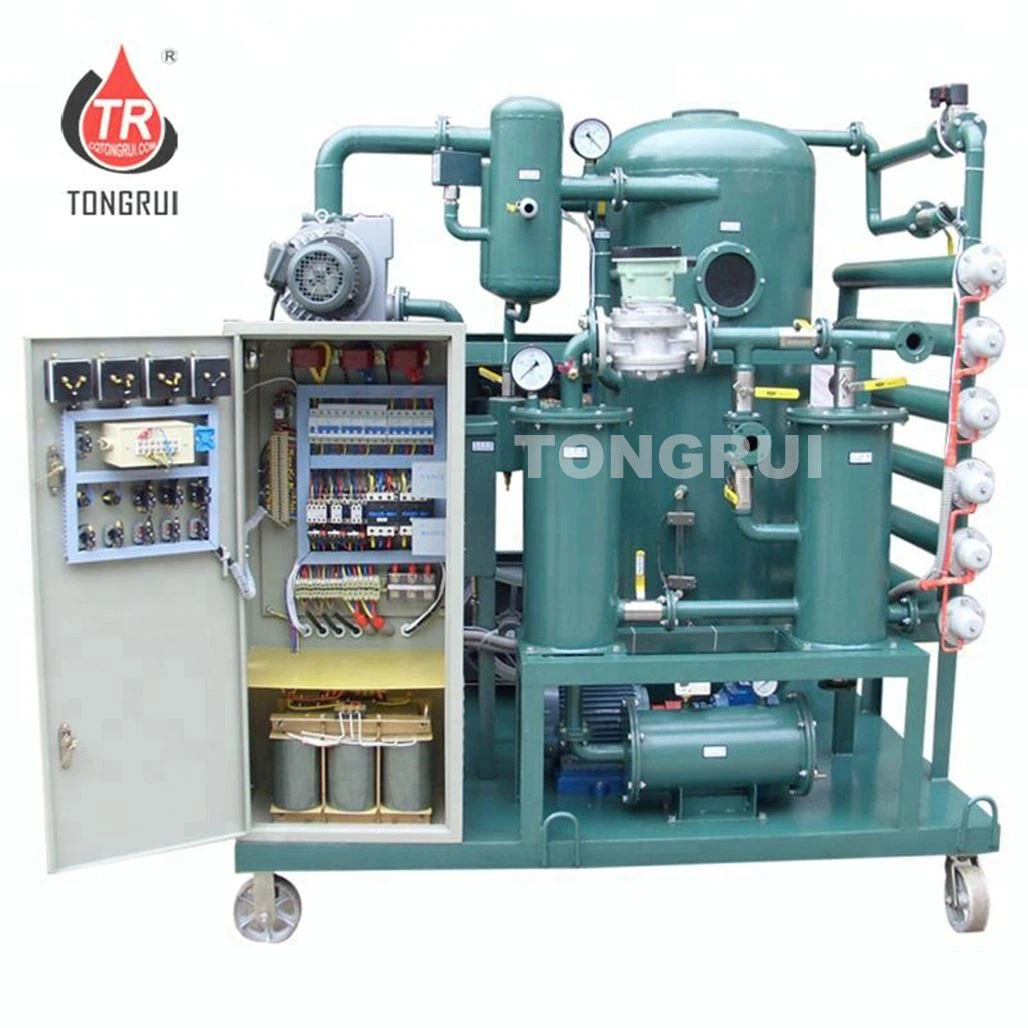

two stages transformer filtration systems

II. Xususiyatlari:

Izolyatsiya qiluvchi yog'dan erkin, eriydigan suv, uglerod, erkin va erigan gazlar va zarracha moddalarni samarali va tez olib tashlash.
Buzilish kuchlanishining qiymatini sezilarli darajada oshiring.
Oson ishlov berish va texnik xizmat ko'rsatish.
Transformatorlarga moy quying.
Onlayn ish.
Kamroq texnik xizmat ko'rsatish va almashtirish xarajatlari.
Yuqori samaradorlik va samaradorlik.
Mobil yoki statsionar variantlarda mavjud.
Kichik o'lchamli, engil, past shovqin.
Har xil o'lchamlar va konfiguratsiyalar (qotishma qalqoni) mavjud.

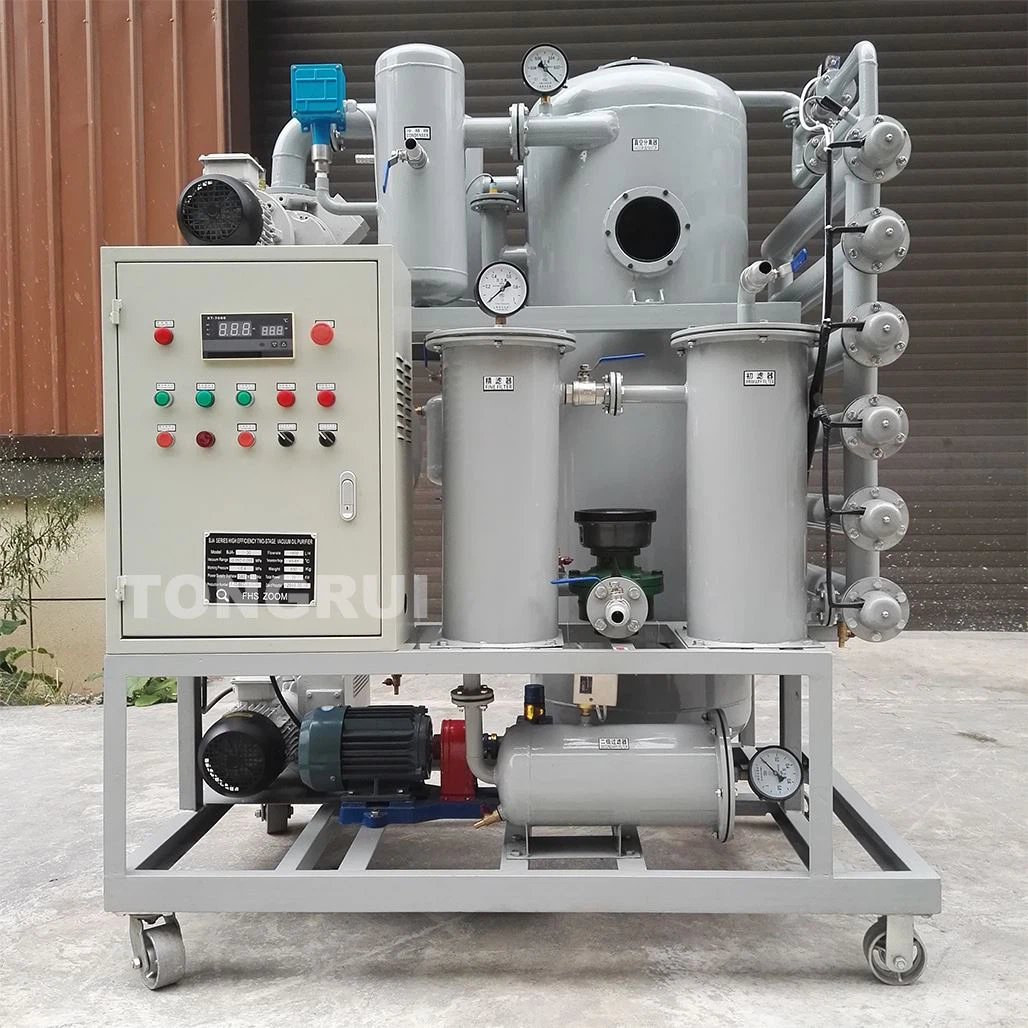

high voltage transformer oil filtration unit

III. ZJA transformator moy filtrlash mashinasining qirralari:

Yuqori samaradorlik va samaradorlik.
Buzilish kuchlanishining qiymatini sezilarli darajada oshiring.
Oson ishlov berish va texnik xizmat ko'rsatish.
Kamroq texnik xizmat ko'rsatish va almashtirish xarajatlari.
Kichik o'lchamli, engil, past shovqin.
Har xil o'lchamlar va konfiguratsiyalar (qalqon) mavjud.

IV. Mavjud uslub:

Fikslash turi, to'rtta g'ildirakli mobil turdagi va treylerli mobil turdagi.
Oddiy ko'rinish turi, javon-qoplama turi va portlashdan himoyalangan-turi.
Turli ranglarda mavjud.

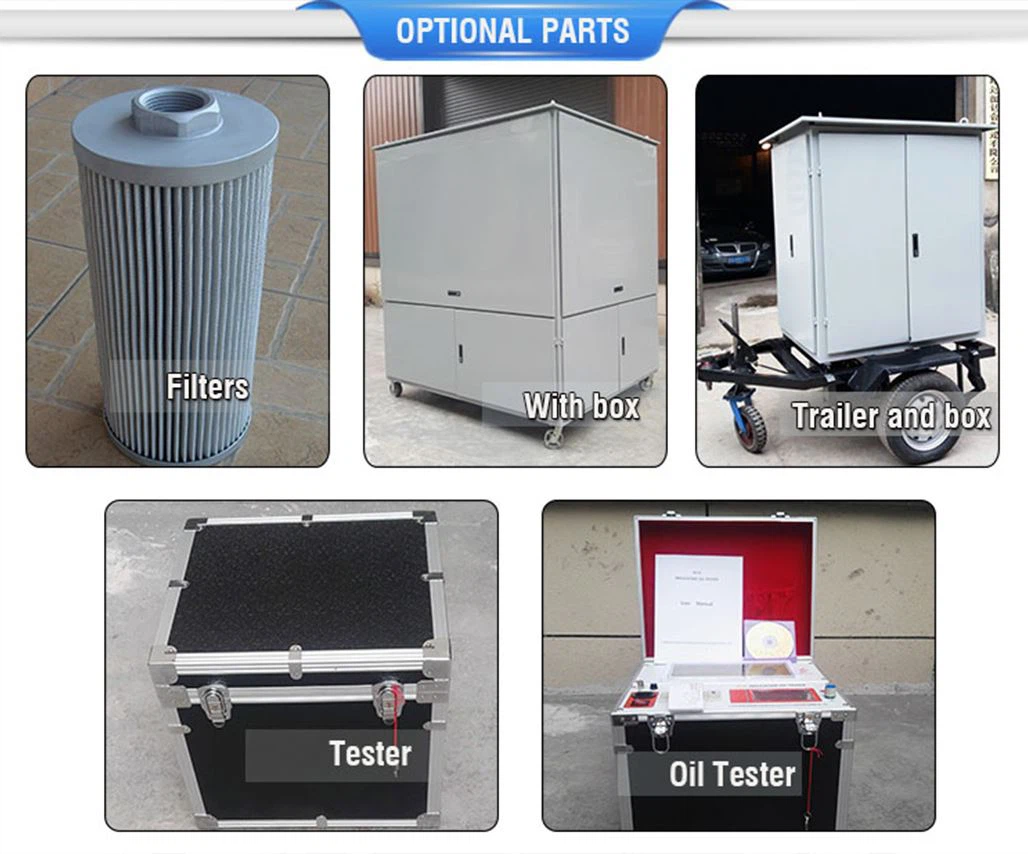

portable transformer oil dehydration machine

V. Texnik spetsifikatsiya

Element		Birlik	ZJA-10	ZJA-20	ZJA-30	ZJA-50	ZJA-100	ZJA-150	ZJA-200
Oqim darajasi		L/H	600	1200	1800	3000	6000	9000	12000
Vakuum diapazoni		Mpa	-0.065 -0.096
Ish bosimi		Mpa	0 dan kichik yoki unga teng.3
Maksimal vakuum diapazoni		Pa	100 dan kam yoki teng
Harorat diapazoni		ºC	45 80
Buzilish kuchlanishi		kV	60 dan katta yoki teng
Nopoklik hajmi		μ m	5 dan kichik yoki teng
Suv tarkibi		PPM	7 dan kichik yoki teng
Gaz tarkibi		foiz	0 dan kichik yoki unga teng.1
Quvvatlantirish manbai		V	380V/3P/50Hz (yoki kerak bo'lganda)
Ish shovqini		dB	70 dan kam yoki teng			75 dan kam yoki teng
Isitish quvvati		Kv	9	15	20	36	60	90	108
Umumiy quvvat		Kv	11	17	23	40	64	95	113
Quvur liniyasi diametri		mm	DN25	DN25	DN25	DN32	DN40	DN50	DN50
Sof og'irlik		Kg	300	320	350	400	500	800	1000
Hajmi	uzunligi	mm	1050	1100	1200	1500	1700	1750	1800
	kengligi	mm	750	800	900	1100	1200	1250	1400
	yuqori	mm	1350	1350	1400	1650	1850	1900	2000

VI. Sotishdan keyingi xizmat:

Mijoz uchun profil ma'lumotlar bazasi.
Xizmat va almashtirish xizmati.
Eskirgan qismlarning xizmat qilish muddatini eslatish / Ta'minlash uchun pullik.
Ikki yillik kafolat uchun mahsulotlarni kuzatish xizmati.
Xitoydan ham, chet eldan ham mijoz uchun o'rnatish bo'yicha qo'llanma.

VII. Mahsulotlar roʻyxati:

1.Insulation Oil treatment machine:ZJA Ultra-high Transformer / Insulation Oil treatment machine (1000KV, ±800KV, 750KV, ±660KV ); ZJB Transformer / Insulation Oil treatment machine ( Less than or equal to 110KV) (one stage vacuum).

2.Turbin yog'ini tozalash mashinasi: ZJC Turbin moyini tozalash mashinasi (maxsus filtrlar orqali suvsizlantirish).

3.Soqol yog'ini tozalash mashinasi: moylash moyi uchun ZJD vakuumli yog'ni tozalash mashinasi (mashina moyi, gidravlik moy, kompressor moyi)

4.Chiqindilarni moyni distillash mashinasi: DIR chiqindi yog'ini asosiy yog'ni distillash mashinasiga; DDR chiqindi yog'i dizel moyini distillash mashinasiga.
